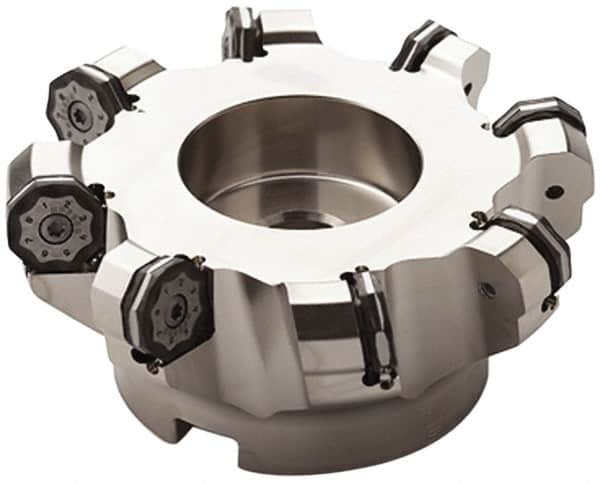

Seco - 8.46" Cut Diam, 2-1/2" Arbor Hole, 0.217" Max Depth of Cut, 40° Indexable Chamfer & Angle Face Mill - 12 Inserts, ON.. 0905 Insert, Right Hand Cut, 12 Flutes, Series R220.48
Item #: 65984726
Brand: Seco
Model #: 45138
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 8.4600 |
| Arbor Hole Diameter (Decimal Inch) | 2.5000 |
| Lead Angle | 40 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | ON.. 0905 |
| Series | R220.48 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.2170 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Wedge |
| Cutter Style | R220.48 |
| Number of Flutes | 12 |
| Keyway Width (Decimal Inch) | 1.0100 |
| Maximum RPM | 2100 |
| Cutting Direction | Right Hand |
| Pitch | Normal |
