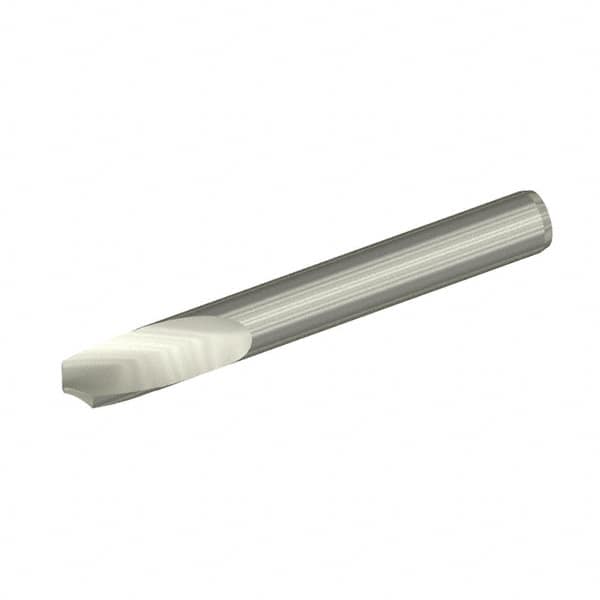

120° 10mm Diam 66mm OAL Solid Carbide Spotting Drill Bright/Uncoated, 12mm Flute Length, 10mm Shank Diam, RH Cut, Series B501
Item #: 66100801
Brand: Kennametal
Model #: 1198733
Product Specifications
| Drill Point Angle | 120 |
| Cutting Diameter (mm) | 10.00 |
| Cutting Diameter (Decimal Inch) | 0.3937 |
| Overall Length (mm) | 66.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Single/Double Ended | Single |
| Series | B501Z |
| Overall Length (Decimal Inch) | 2.5984 |
| Flute Length (Decimal Inch) | 0.4724 |
| Flute Length (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Shank Diameter (mm) | 10.00 |
| Flute Type | Spiral |
| Number of Flutes | 2 |
| Shank Type | Straight-Cylindrical |
| Manufacturers Grade | K10 |
| Tool Performance | General Purpose |
| Tool Application | Spotting |
| Cutting Direction | Right Hand |
