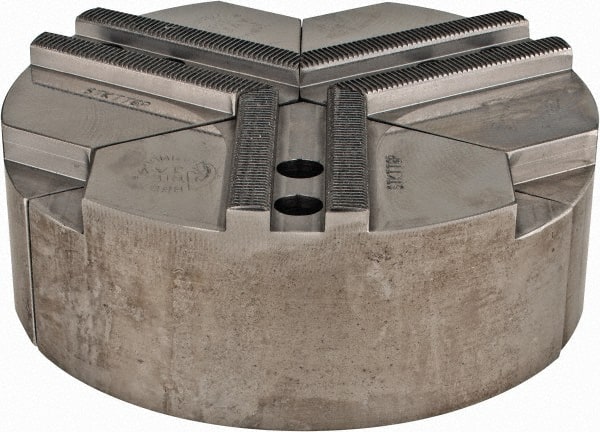

Abbott Workholding Products - 1.5mm x 60° Serrated Attachment, Round Soft Lathe Chuck Jaw - 3 Jaws, Steel, 0.7874" Btw Mount Hole Ctrs, 6" Wide x 2" High, 0.4724" Groove, 0.3937" & 10mm Fastener
Item #: 66155029
Brand: Abbott Workholding Products
Model #: STKTT6P
Exact Tooling IR#: 04
Features and Benefits
Pointed jaws are blanks used for smaller part diameters, allowing closer contact than square end jaws.
| Product Specifications | |
|---|---|
| Jaw Type | Round |
| Material | Steel |
| Jaw Interface Type | 1.5mm x 60 Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 6 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 6.0000 |
| Maximum Compatible Chuck Diameter (mm) | 152.40 |
| Overall Height (mm) | 50.80 |
| Overall Height (Inch) | 2 |
| Groove Width (mm) | 12.00 |
| Groove Width (Decimal Inch) | 0.4724 |
| Distance Between Mount Hole Centers (mm) | 20.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.7874 |
| Jaw End Shape | Pointed |
| Fastener Size (mm) | 10.00 |
| Fastener Size (Decimal Inch) | 0.3937 |
| Number of Jaws | 3 |
| Overall Width/Diameter (mm) | 152.40 |
| Overall Width/Diameter (Inch) | 6 |
| Overall Width/Diameter (Decimal Inch) | 6.0000 |
| Material Grade | 1018 |
