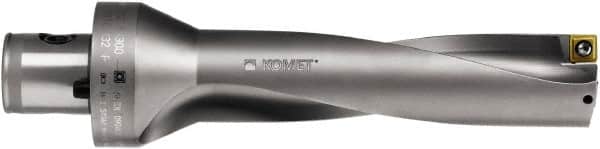

Komet - 2.992" Max Drill Depth, 2xD, 1-15/32" Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66221854
Brand: Komet
Model #: U1073730
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U10 |
| Drill Diameter (Inch) | 1-15/32 |
| Drill Diameter (Decimal Inch) | 1.4688 |
| Maximum Drill Depth (Decimal Inch) | 2.9920 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4890 |
| Overall Length/Projection (Decimal Inch) | 4.9600 |
| Insert Compatibility | SOEX 120508 |
| Body Length (Decimal Inch) | 4.9600 |
| Series | KUB Quatron |
