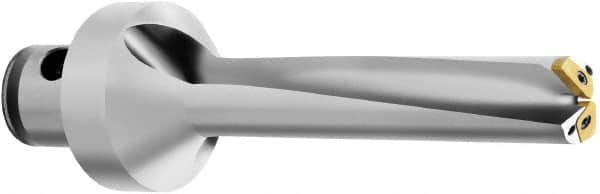

Komet - 7.087" Max Drill Depth, 5xD, 1.398" Diam, Indexable Insert Drill - 2 Inserts, ABS 50 Modular Connection Shank
Item #: 66225707
Brand: Komet
Model #: U2003570
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | U20 |
| Drill Diameter (Decimal Inch) | 1.3980 |
| Maximum Drill Depth (Decimal Inch) | 7.0870 |
| Shank Type | Modular Connection |
| Modular Connection Size | ABS 50 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.4130 |
| Overall Length/Projection (Decimal Inch) | 8.4650 |
| Insert Compatibility | XOHX 1504 |
| Body Length (Decimal Inch) | 8.4650 |
| Series | KUB Duon |
