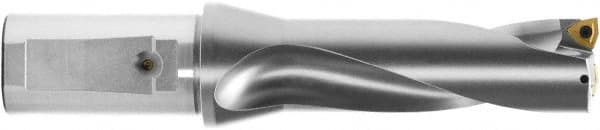

Komet - 84mm Max Drill Depth, 3xD, 28mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Combination Shank
Item #: 66230319
Brand: Komet
Model #: V4572802
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V45 |
| Drill Diameter (mm) | 28.00 |
| Drill Diameter (Decimal Inch) | 1.1024 |
| Maximum Drill Depth (mm) | 84.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3071 |
| Shank Type | Combination |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.2205 |
| Maximum Drill Diameter (mm) | 31.00 |
| Overall Length/Projection (mm) | 168.00 |
| Overall Length/Projection (Decimal Inch) | 6.6142 |
| Insert Compatibility | WOEX 05T304 |
| Body Length (Decimal Inch) | 4.2520 |
| Body Length (mm) | 108.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Series | KUB Trigon |
