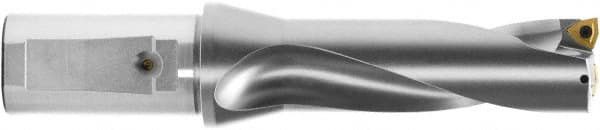

Komet - 42mm Max Drill Depth, 3xD, 14mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Combination Shank
Item #: 66230723
Brand: Komet
Model #: V4471404
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V44 |
| Drill Diameter (mm) | 14.00 |
| Drill Diameter (Decimal Inch) | 0.5512 |
| Maximum Drill Depth (mm) | 42.00 |
| Maximum Drill Depth (Decimal Inch) | 1.6535 |
| Shank Type | Combination |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.00 |
| Overall Length/Projection (mm) | 122.00 |
| Overall Length/Projection (Decimal Inch) | 4.8032 |
| Insert Compatibility | WOEX 030204 |
| Body Length (Decimal Inch) | 2.5984 |
| Body Length (mm) | 66.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | KUB Trigon |
