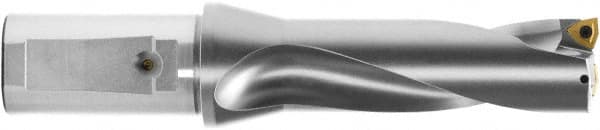

Komet - 84mm Max Drill Depth, 4xD, 21mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Combination Shank
Item #: 66231291
Brand: Komet
Model #: V4492102
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V44 |
| Drill Diameter (mm) | 21.00 |
| Drill Diameter (Decimal Inch) | 0.8268 |
| Maximum Drill Depth (mm) | 84.00 |
| Maximum Drill Depth (Decimal Inch) | 3.3071 |
| Shank Type | Combination |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.8661 |
| Maximum Drill Diameter (mm) | 22.00 |
| Overall Length/Projection (mm) | 164.00 |
| Overall Length/Projection (Decimal Inch) | 6.4567 |
| Insert Compatibility | WOEX 040304 |
| Body Length (Decimal Inch) | 4.2520 |
| Body Length (mm) | 108.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | KUB Trigon |
