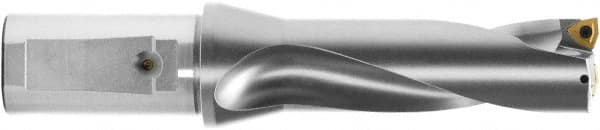

Komet - 52mm Max Drill Depth, 2xD, 26mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Combination Shank
Item #: 66231382
Brand: Komet
Model #: V4532602
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V45 |
| Drill Diameter (mm) | 26.00 |
| Drill Diameter (Decimal Inch) | 1.0236 |
| Maximum Drill Depth (mm) | 52.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0472 |
| Shank Type | Combination |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.1024 |
| Maximum Drill Diameter (mm) | 28.00 |
| Overall Length/Projection (mm) | 136.00 |
| Overall Length/Projection (Decimal Inch) | 5.3543 |
| Insert Compatibility | WOEX 05T304 |
| Body Length (Decimal Inch) | 2.9921 |
| Body Length (mm) | 76.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Series | KUB Trigon |
