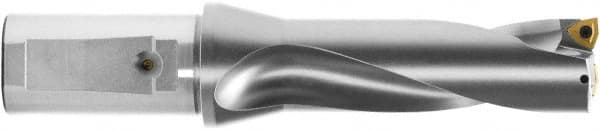

Komet - 51mm Max Drill Depth, 3xD, 17mm Diam, Indexable Insert Drill - 2 Inserts, 20mm Shank Diam, Combination Shank
Item #: 66234592
Brand: Komet
Model #: V4371702
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V43 |
| Drill Diameter (mm) | 17.00 |
| Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Depth (mm) | 51.00 |
| Maximum Drill Depth (Decimal Inch) | 2.0079 |
| Shank Type | Combination |
| Shank Diameter (mm) | 20.00 |
| Shank Diameter (Decimal Inch) | 0.7874 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Diameter (mm) | 18.00 |
| Overall Length/Projection (mm) | 125.00 |
| Overall Length/Projection (Decimal Inch) | 4.9213 |
| Insert Compatibility | WOEX 030204 |
| Body Length (Decimal Inch) | 2.9528 |
| Body Length (mm) | 75.00 |
| Shank Length (mm) | 50.00 |
| Shank Length (Decimal Inch) | 1.9685 |
| Series | KUB Trigon |
