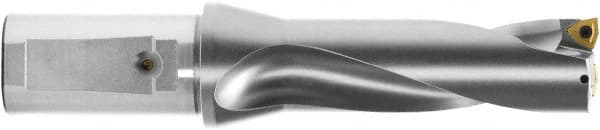

Komet - 45mm Max Drill Depth, 3xD, 15mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Combination Shank
Item #: 66235789
Brand: Komet
Model #: V4471504
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | V44 |
| Drill Diameter (mm) | 15.00 |
| Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Depth (mm) | 45.00 |
| Maximum Drill Depth (Decimal Inch) | 1.7717 |
| Shank Type | Combination |
| Shank Diameter (mm) | 25.00 |
| Shank Diameter (Decimal Inch) | 0.9843 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6299 |
| Maximum Drill Diameter (mm) | 16.00 |
| Overall Length/Projection (mm) | 125.00 |
| Overall Length/Projection (Decimal Inch) | 4.9213 |
| Insert Compatibility | WOEX 030204 |
| Body Length (Decimal Inch) | 2.7165 |
| Body Length (mm) | 69.00 |
| Shank Length (mm) | 56.00 |
| Shank Length (Decimal Inch) | 2.2047 |
| Series | KUB Trigon |
