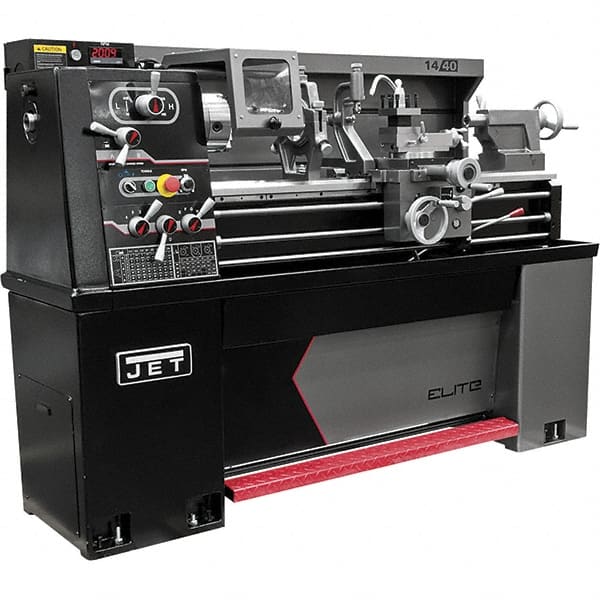

Jet - 13" Swing, 40" Between Centers, 230 Volt, Triple Phase Engine Lathe - 3 hp, 1-1/2" Bore Diam, 30" Deep x 57" High x 77" Long
Item #: 66264649
Brand: Jet
Model #: 892405
Exact Tooling IR#: 04
Features and Benefits
Engine lathes are used for heavy-duty work and offer heavy casted machine bases with built-in coolant systems and foot brakes. The Swing range on these lathes is from 13" and larger.
Frequency drive systems, also known as Electronic Variable Speed control (EVS), are similar to variable speed pulleys, but the speed is controlled electronically. These systems feature several speeds within a specified speed range.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Machine Type | Engine Lathe |
| Spindle Speed Control | Frequency |
| Phase | 3 |
| Voltage | 230 |
| Horsepower (HP) | 3 |
| Swing (Inch) | 13 |
| Distance Between Centers (Inch) | 40 |
| Spindle Bore Diameter (Inch) | 1-1/2 |
| Swing Over Gap (Decimal Inch) | 19.0000 |
| Swing Over Cross Slide (Decimal Inch) | 7.6250 |
| Gap Length (Decimal Inch) | 9.0000 |
| Bed Width (Decimal Inch) | 8.5000 |
| Spindle Nose Designation | D1-4 |
| Number of Spindle Speeds | Variable |
| Number of Inch Threads | 40 |
| Maximum Threads Per Inch | 112 |
| Minimum Metric Pitch (Decimal Inch) | 22.0000 |
| Maximum Metric Pitch (Decimal Inch) | 7.5000 |
| Number of Metric Threads | 22 |
| Min. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0012 |
| Max. Longitudinal Feed Per Rev. (Decimal Inch) | 0.0294 |
| Max. Cross Feed Rate Per Revolution (Decimal Inch) | 0.0294 |
| Cross Slide Travel (Decimal Inch) | 6.5000 |
| Tailstock Travel (Decimal Inch) | 4.7500 |
| Overall Length (Decimal Inch) | 77.0000 |
| Overall Height (Inch) | 57 |
| Overall Depth (Decimal Inch) | 30.0000 |
| Includes 1 | Jet Elite Lathe E-1340VS With ACU-RITE 200S DRO With Collet Closer |
| Certification | CSA/UL |
| Warranty | Mfr's 3 Year Warranty |
