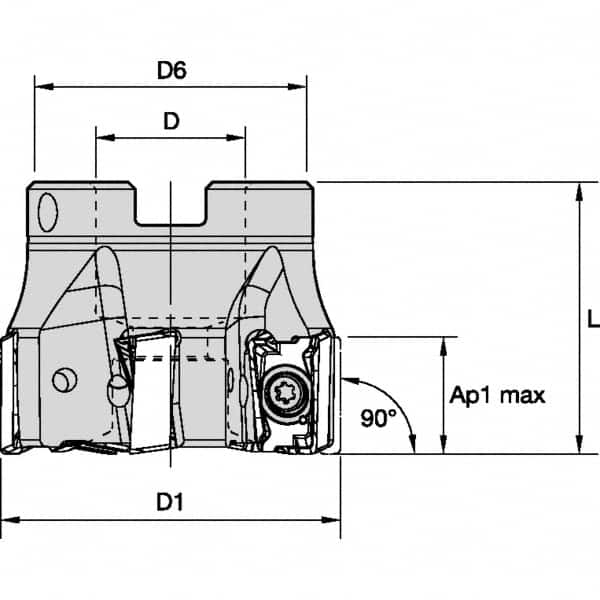

Kennametal - 16 Inserts, 160mm Cut Diam, 40mm Arbor Diam, 15.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0° Lead Angle, 63mm High, LNGU15T608SRGE Insert Compatibility, Through Coolant, Series MILL 4-15
Item #: 66280934
Brand: Kennametal
Model #: 5555806
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 160.00 |
| Cutting Diameter (Decimal Inch) | 6.2990 |
| Arbor Hole Diameter (mm) | 40.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.5750 |
| Lead Angle | 0 |
| Overall Height (mm) | 63.00 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | LNGU15T608SRGE |
| Series | MILL 4-15 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw/Clamp |
| Number of Flutes | 16 |
| Hub Diameter (mm) | 110.00 |
| Hub Diameter (Decimal Inch) | 4.3310 |
| Maximum Body Diameter (Decimal Inch) | 5.2750 |
| Maximum RPM | 8400 |
| Toolholder Material | Steel |
