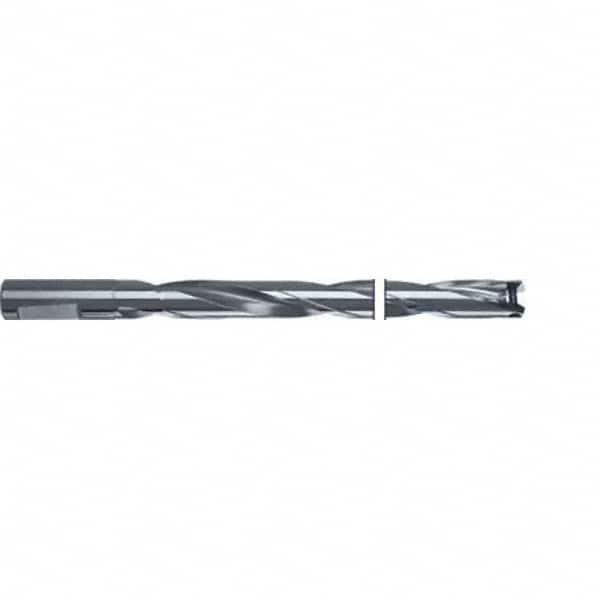

Guhring - 30mm Max Diam, 10xD, 31.75mm Shank Diam, 424mm OAL, Replaceable Tip Drill - HT 800 WP Insert, 30.005 HT800 Toolholder, Series 4110
Item #: 66360561
Brand: Guhring
Model #: 9041100300050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | 4110 |
| Maximum Drill Diameter (mm) | 30.00 |
| Drill Depth by Diameter Ratio | 10xD |
| Maximum Drill Depth (mm) | 310.60 |
| Shank Diameter (mm) | 31.75 |
| Insert Style | HT 800 WP |
| Insert Seat Size | 300 |
| Toolholder Style | 30.005 HT800 |
| Shank Type | Whistle Notch |
| Overall Length (mm) | 424.00 |
| Shank Length (mm) | 392.40 |
