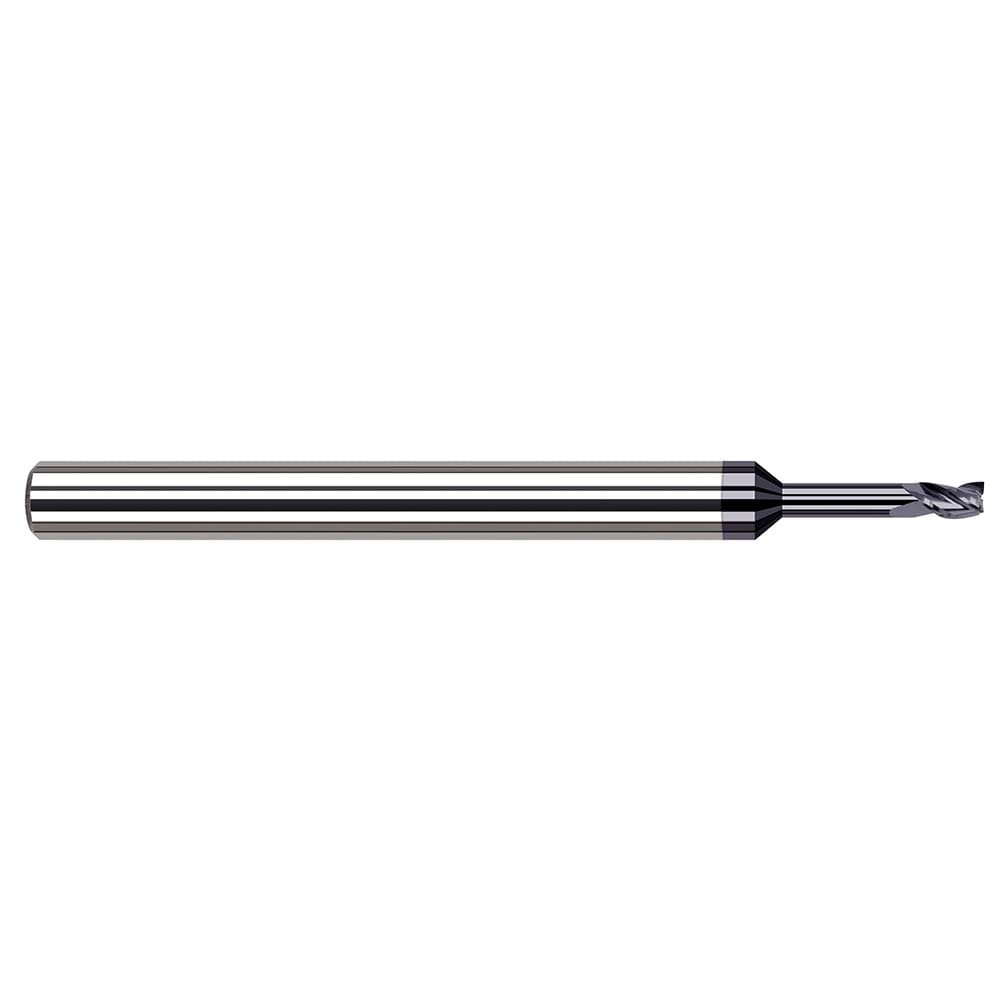

Square End Mill: 0.0400" Dia, 0.0600" LOC, 3 Flute, Solid Carbide
Item #: 87702361
Brand: Harvey Tool
Model #: 791340-C6
Product Specifications
| Mill Diameter (Decimal Inch) | 0.0400 |
| Number Of Flutes | 3 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.0600 |
| Shank Diameter (Inch) | 1/8 |
| Shank Diameter (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiN Nano |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | Yes |
| Coolant Through | No |
| Helix Angle | 37 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Hardened Materials |
| Primary Workpiece Material Code | P; H; K; M |
| Coating/Finish | AlTiN Nano |
| Variable Helix | Yes |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Spiral |
| Shank Type | Straight |
| Material Grade | Solid Carbide |
| Reach Length (Inch) | 13/64 |
| Reach Length (Decimal Inch) | 0.2030 |
| Series | Variable Helix End Mills for High Temp Alloys - Square - Long Reach, Stub Flute |
| System Of Measurement | Decimal Inch |
| UNSPSC Code | 27112803 |
| Country of Origin | UNITED STATES |
