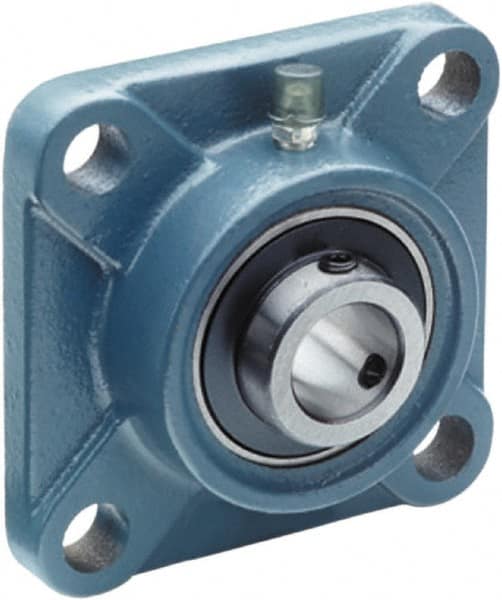

Tritan - 2-1/2" ID, 7.36" OAL x 2.74" OAH 4-Bolt Flange - 8,992 Lb Static Cap, 12,927 Lb Dyn Cap, 5.87" Btw Mnt Hole Ctrs, 1.18" Base-to-Ctr Ht, Cast Iron/Steel
Item #: 66500430
Brand: Tritan
Model #: UCF213-40
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | 4-Bolt Flange |
| Inside Diameter (Decimal Inch) | 2.5000 |
| Inside Diameter (Inch) | 2-1/2 |
| Width (Decimal Inch) | 7.3600 |
| Overall Length (Decimal Inch) | 7.3600 |
| Overall Height (Decimal Inch) | 2.7400 |
| Static Load Capacity (Pounds) | 8992.00 |
| Dynamic Load Capacity (Pounds) | 12927 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 5.8700 |
| Material | Cast Iron/Steel |
| Distance Between Base And Center (Decimal Inch) | 1.1800 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 5/8 |
| Metric Bolt Size | 16.0000 |
