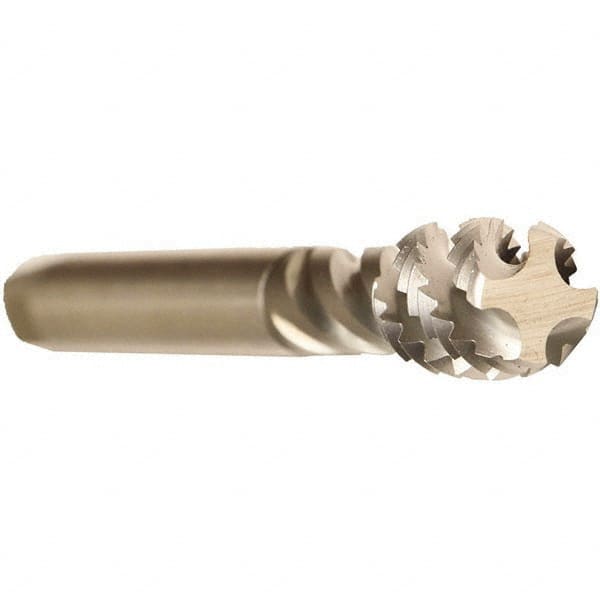

Emuge - 5/8-18 UNF, 5 Flute, 45° Helix, Bottoming Chamfer, Bright Finish, Cobalt Spiral Flute STI Tap - Right Hand Flute, 4.331" OAL, 0.542" Shank Diam, 0.984" Thread Length, 3B Class of Fit, Series Enorm Z
Item #: 66532219
Brand: Emuge
Model #: CU513510.5645
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers are used for threading blind holes. They have 1 to 2 threads.
Bright provides a smooth, polished finish on the tool. It increases chip flow in softer materials such as aluminum, wood and plastic.
| Product Specifications | |
|---|---|
| Thread Size (Inch) | 5/8-18 |
| Class of Fit | 3B |
| Number of Flutes | 5 |
| Chamfer | Bottoming |
| Finish/Coating | Bright |
| Overall Length (Decimal Inch) | 4.3310 |
| Helix Angle | 45 |
| Thread Standard | UNF |
| Material | Cobalt |
| Flute Direction | Right Hand |
| Thread Length (Decimal Inch) | 0.9840 |
| Series/List | Enorm Z |
| Shank Diameter (Decimal Inch) | 0.5420 |
| Material Application | Copper; Stainless Steel; Steel |
