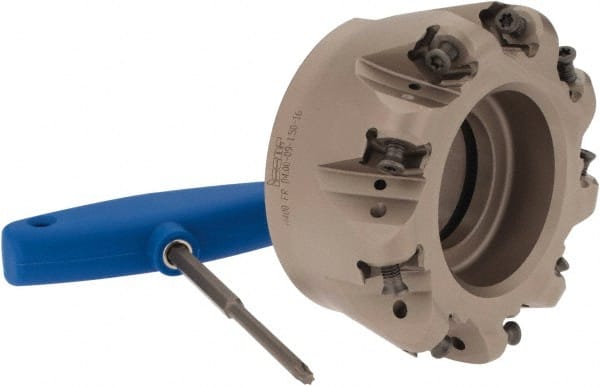

Iscar - 4" Cut Diam, 0.47" Max Depth, 1-1/2" Arbor Hole, 9 Inserts, H400 RNHU 1606 Insert Style, Indexable Copy Face Mill - H400 FR-16 Cutter Style, 2" High, Through Coolant, Series Helido
Item #: 66616087
Brand: Iscar
Model #: 3106167
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 2.0000 |
| Series | Helido |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | H400 RNHU 1606 |
| Cutter Style | H400 FR-16 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Complete Insert Compatibility | H400 RNHU |
