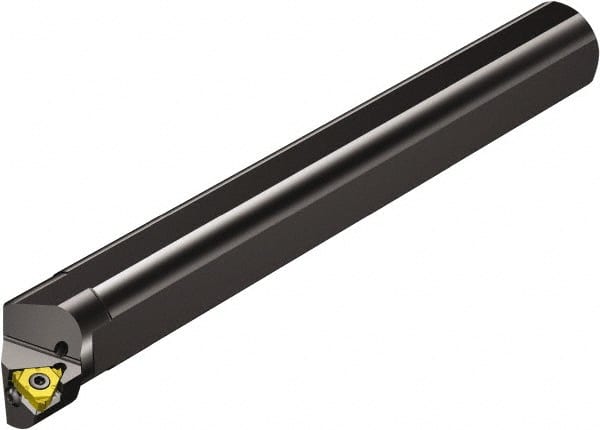

Sandvik Coromant - Internal/External Thread, Right Hand Cut, 1-1/2" Shank Width x 35mm Shank Height Indexable Threading Toolholder - 15" OAL, 266RL-22 Insert Compatibility, 266RKF Toolholder, Series CoroThread 266
Item #: 66670662
Brand: Sandvik Coromant
Model #: 5758105
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal/External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Height (mm) | 35.00 |
| Shank Height (Decimal Inch) | 1.3780 |
| Overall Length (Decimal Inch) | 15.0000 |
| Overall Length (Inch) | 15 |
| Insert Compatibility | 266RL-22 |
| Series | CoroThread 266 |
| Toolholder Style | 266RKF |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (Inch) | 15 |
| Back of Bar to Cutting Edge (Decimal Inch) | 15.0000 |
| Center to Cutting Edge (mm) | 27.00 |
| Center to Cutting Edge (Decimal Inch) | 1.0630 |
| Neck Diameter (Decimal Inch) | 1.5000 |
| Head Length (Inch) | 4-1/2 |
| Head Length (Decimal Inch) | 4.5000 |
| Shank Length (Inch) | 15 |
| Shank Length (Decimal Inch) | 15.0000 |
| Maximum Bore Depth (Decimal Inch) | 4.5000 |
| Minimum Bore Diameter (Decimal Inch) | 1.9700 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Toolholder Material | Steel |
