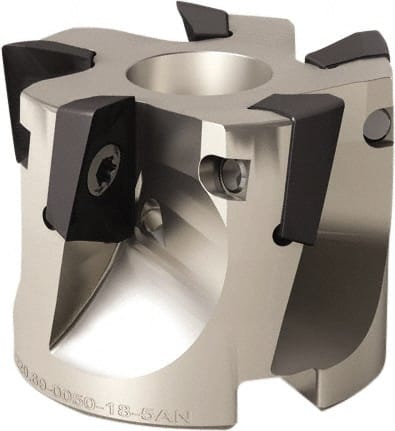

Seco - 9 Inserts, 6" Cut Diam, 2" Arbor Diam, 0.669" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 2.48" High, XO.. 1806 Insert Compatibility, Series Power Turbo
Item #: 66712191
Brand: Seco
Model #: 55358
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Decimal Inch) | 2.0000 |
| Lead Angle | 90 |
| Overall Height (Decimal Inch) | 2.4800 |
| Insert Compatibility | XO.. 1806 |
| Series | Power Turbo |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.6690 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutting Rake Angle | -8 |
| Rake | Negative |
| Keyway Width (Decimal Inch) | 0.7600 |
| Maximum RPM | 5000 |
| Pitch | Normal |
| Complete Insert Compatibility | XOEX 180604FR-E10; XOEX 180608FR-E10; XOEX 180616FR-E10; XOEX 180620FR-E10; XOEX 180624FR-E10; XOEX 180631FR-E10; XOEX 180640FR-E10; XOEX 180650FR-E10; XOEX 180663FR-E10; XOMX 180604R-M10; XOMX 180604TR-ME13; XOMX 180608R-M10; XOMX 180608TR-D16; XOMX 1806 |
