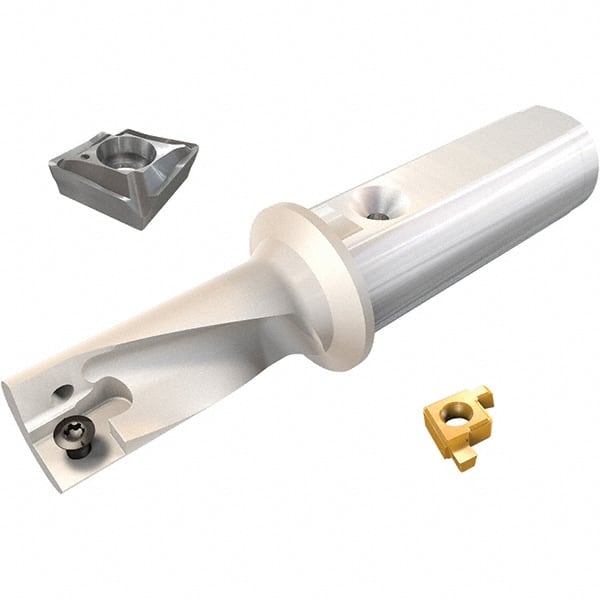

Iscar - 0.551" Max Diam, 2.25xD, 1.24" Max Drill Depth, 0.63" Shank Diam, 3.29" OAL, Replaceable Tip Drill - XCMT-MF, XCMT-MG Insert, DRG-MF Toolholder, Series DRG-MF
Item #: 66803339
Brand: Iscar
Model #: 3203774
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | DRG-MF |
| Maximum Drill Diameter (Decimal Inch) | 0.5510 |
| Drill Depth by Diameter Ratio | 2.25xD |
| Maximum Drill Depth (Decimal Inch) | 1.2400 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | XCMT-MF; XCMT-MG |
| Toolholder Style | DRG-MF |
| Flute Length (Decimal Inch) | 1.2400 |
| Body Length (Decimal Inch) | 1.5200 |
| Overall Length (Decimal Inch) | 3.2900 |
| Shank Length (Decimal Inch) | 1.7700 |
