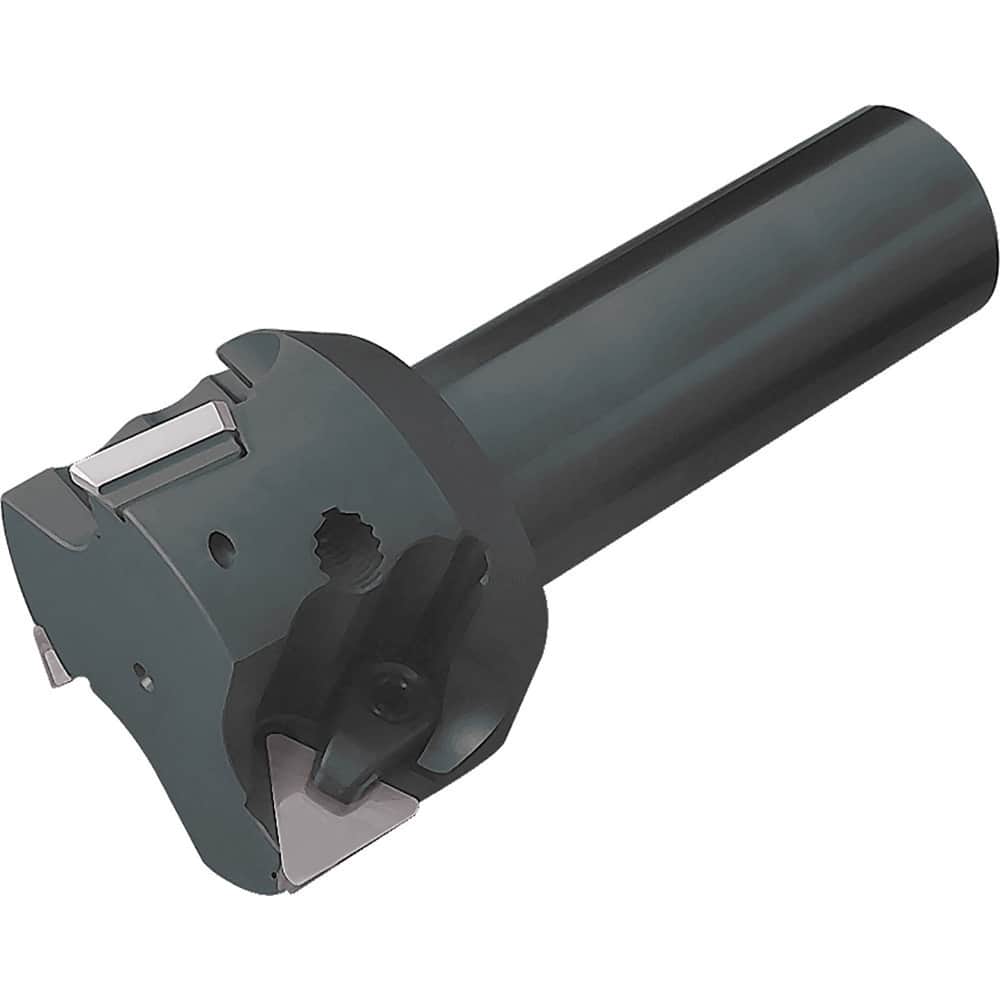

Kyocera - Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 2.0000 ; Cutting Diameter (Inch): 2 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 0.7500 ; Overall Length/Projection (Decimal Inch): 3.5300 ; Lead Angle: 90
Item #: 66810391
Brand: Kyocera
Model #: 8603984
Product Specifications
Indexable Square-Shoulder End Mills; Cutting Diameter (Decimal Inch): 2.0000 ; Cutting Diameter (Inch): 2 ; Shank Type: Cylindrical ; Shank Diameter (Inch): 0.7500 ; Overall Length/Projection (Decimal Inch): 3.5300 ; Lead Angle: 90
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Cutting Diameter (Inch) | 2 |
| Shank Type | Cylindrical |
| Shank Diameter (Inch) | 0.7500 |
| Overall Length/Projection (Decimal Inch) | 3.5300 |
| Lead Angle | 90 |
| Series | MTP |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5300 |
| Insert Holding Method | Clamp |
| End Mill Type | End Mill |
| Cutter Style | MTP |
| Number of Flutes | 3 |
| Head Length (Inch) | 1.5000 |
| Weldon Flat | Yes |
| Insert Compatibility | TPMR32PDER-H; TPKN32PDTR; TPKN32PDFR; TPG32?; TPM32? |
| Shank Length (Decimal Inch) | 2.0300 |
| Toolholder Material | Steel |
| Rake Angle | 5 (Axial);0 (Radial) |
| Multi-Use Tool | Yes |
| Hand of Holder | Right Hand |
