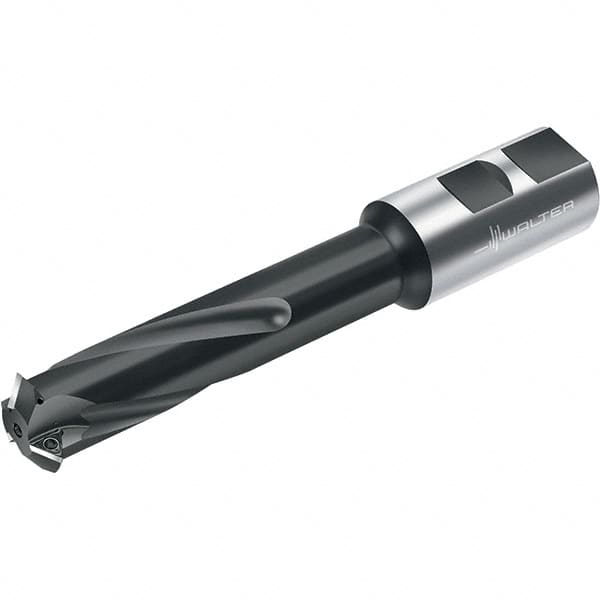

Walter - Indexable Thread Mills Cutting Diameter (mm): 20.00 Cutting Diameter (Decimal Inch): 0.7874
Item #: 66962457
Brand: Walter
Model #: 7493797
Exact Tooling IR#: 04
Product Specifications
Indexable Thread Mills; Cutting Diameter (mm): 20.00 ; Cutting Diameter (Decimal Inch): 0.7874 ; Maximum Hole Depth (mm): 67.00 ; Insert Style: P26300 ; Insert Size (Decimal Inch): 0.1560 ; Toolholder Style: T2712
| Cutting Diameter (mm) | 20.00 |
| Cutting Diameter (Decimal Inch) | 0.7874 |
| Maximum Hole Depth (mm) | 67.00 |
| Insert Style | P26300 |
| Insert Size (Decimal Inch) | 0.1560 |
| Toolholder Style | T2712 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Decimal Inch) | 4.9530 |
| Number of Threading Inserts | 3 |
| Thread Type | Internal |
| Cutting Direction | Right Hand |
| Through Coolant | Yes |
| Toolholder Material | Steel |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
