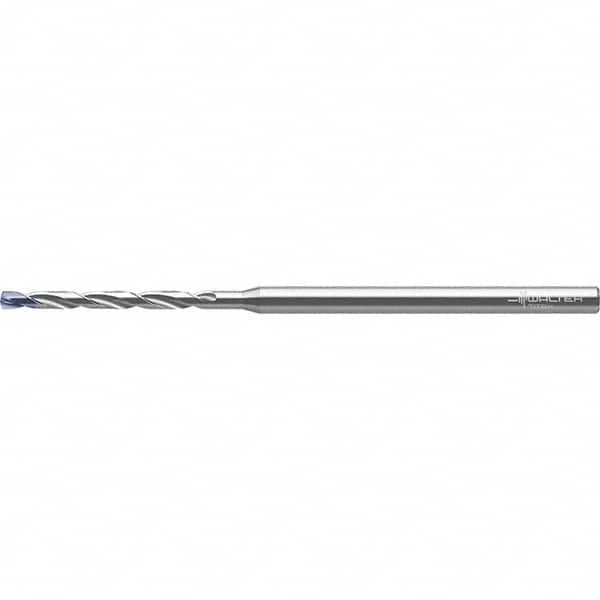

Walter-Titex - 2mm, 140° Point, Carbide Micro Drill Bit
Item #: 39885728
Brand: Walter-Titex
Model #: 6712931
Features and Benefits
Aluminum chromium nitride (AlCrN) has higher-heat resistance than AlTiN. It is commonly used for machining aircraft and aerospace material, nickel alloys, stainless steel, titanium, cast iron and carbon steel.
| Product Specifications | |
|---|---|
| Drill Bit Size (Decimal Inch) | 0.0787 |
| Drill Bit Size (mm) | 2 |
| Shank Diameter (mm) | 3 |
| Shank Diameter (Inch) | 0.118 |
| Drill Point Angle | 140 |
| Drill Bit Material | Carbide |
| Drill Bit Finish/Coating | AlCrN |
| Cutting Direction | Right Hand |
| Overall Length (mm) | 63 |
| Overall Length (Decimal Inch) | 2.480 |
| Flute Length (mm) | 23.00 |
| Flute Length (Decimal Inch) | 0.906 |
| Through Coolant | No |
| Maximum Drilling Depth (mm) | 20.00 |
| Material Grade | Carbide |
| Series/List | DB133-08-A0 |
