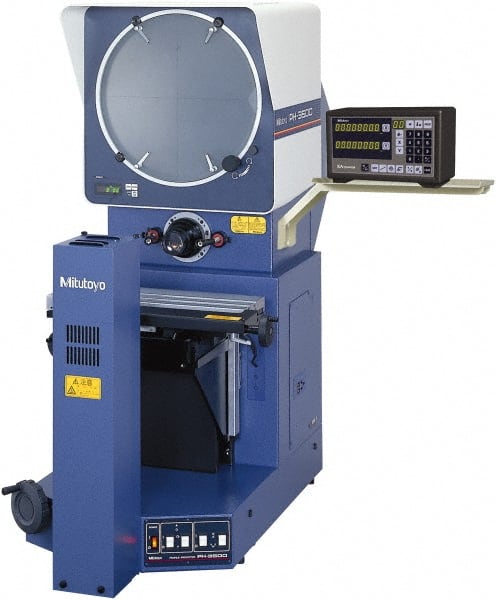

Mitutoyo - Optical Comparators & Profile Projectors Orientation: Horizontal Magnification: 10x
Item #: 57484362
Brand: Mitutoyo
Model #: 64PKA089
Features and Benefits
Horizontal comparators or projectors are used with heavy parts or with shapes that require being in a fixed position. The path of the light is projected horizontally onto the workpiece.
Product Specifications
Optical Comparators & Profile Projectors; Orientation: Horizontal ; Magnification: 10x ; Screen Diameter (Decimal Inch): 14.0000 ; X-Axis Stage Travel Range (Inch): 10.0000 ; X-Axis Stage Travel Range (Decimal Inch): 10.0000 ; Y-Axis Stage Travel Range (Decimal Inch): 6.0000
| Orientation | Horizontal |
| Magnification | 10x |
| Screen Diameter (Decimal Inch) | 14.0000 |
| X-Axis Stage Travel Range (Inch) | 10.0000 |
| X-Axis Stage Travel Range (Decimal Inch) | 10.0000 |
| Y-Axis Stage Travel Range (Decimal Inch) | 6.0000 |
| Magnification Accuracy (Surface Illumination) | 0.15% |
| Magnification Accuracy (Contour Illumination) | 0.1% |
| Stage Length (Inch) | 17.7000 |
| Stage Length (Decimal Inch) | 17.7000 |
| Stage Width (Decimal Inch) | 7.7000 |
| Overall Length (mm) | 1138.00 |
| Overall Length (Decimal Inch) | 44.8000 |
| Overall Width (mm) | 460.00 |
| Overall Width (Decimal Inch) | 18.1000 |
| Light Source | 150W/24V Halogen Bulb |
| Overall Height (mm) | 1155.70 |
| Lens Included | Yes |
