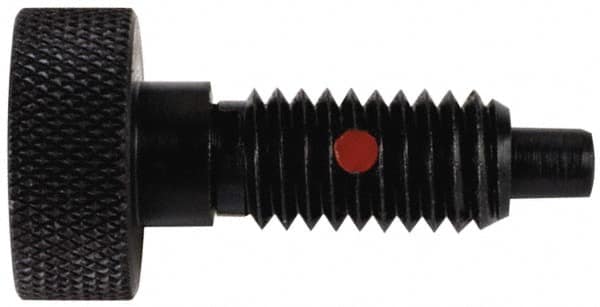

TE-CO - Knob-Handle Plungers Thread Size: 1/2-13 Thread Length (Decimal Inch): 0.8750
Item #: 76850296
Brand: TE-CO
Model #: 54504
Product Specifications
Knob-Handle Plungers; Thread Size: 1/2-13 ; Thread Length (Decimal Inch): 0.8750 ; Plunger Type: Non-Locking ; Knob Style: Knurled ; Body Length (Decimal Inch): 1.1200 ; Length Under Head/Shoulder (Decimal Inch): 0.8750
| Thread Size | 1/2-13 |
| Thread Length (Decimal Inch) | 0.8750 |
| Plunger Type | Non-Locking |
| Knob Style | Knurled |
| Body Length (Decimal Inch) | 1.1200 |
| Length Under Head/Shoulder (Decimal Inch) | 0.8750 |
| Plunger Projection (Decimal Inch) | 0.2500 |
| Maximum Plunger Diameter (Decimal Inch) | 0.2480 |
| Initial End Force (Lb.) | 1.00 |
| Final End Force (Lb.) | 10.00 |
| Locking Element | Yes |
| Plunger Length (Decimal Inch) | 1.5000 |
| Head Diameter (Decimal Inch) | 1.0000 |
| Head Height (Decimal Inch) | 0.3800 |
| Head & Shoulder Height (Decimal Inch) | 0.6250 |
| Material | Stainless Steel |
| Plunger Diameter Tolerance (Decimal Inch) | +0.0010 |
