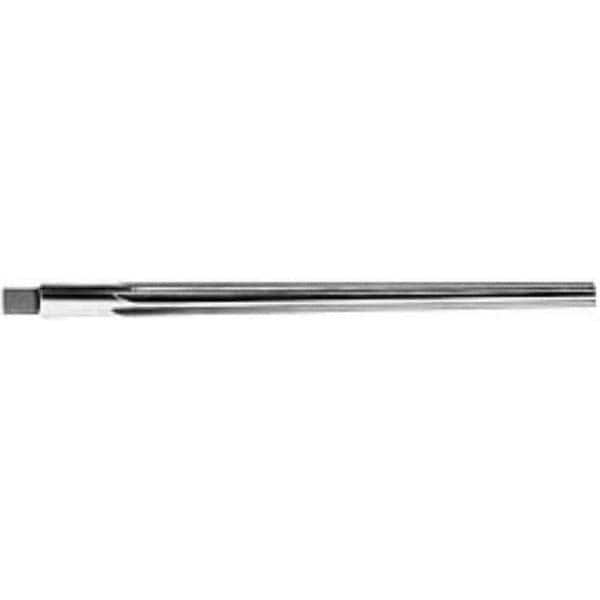

Interstate - #14 Pin, 1.542" Diam, 1-1/4" Small End, 1-1/2" Diam Straight Shank, 14" Flute, Taper Pin Reamer
Item #: 02401149
Brand: Interstate
Model #:
Features and Benefits
Straight flute reamers are the most common and used in general purpose though-hole applications. They are used for reaming holes without interrupted cuts such as keyways and cross sections.
| Product Specifications | |
|---|---|
| Taper Pin Size (Number) | #14 |
| Small End Diameter (Decimal Inch) | 1.2500 |
| Reamer Diameter (Decimal Inch) | 1.5420 |
| Flute Type | Straight |
| Shank Type | Straight |
| Overall Length (Inch) | 18-1/4 |
| Flute Length (Inch) | 14 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Reamer Material | High Speed Steel |
| Reamer Finish/Coating | Bright |
