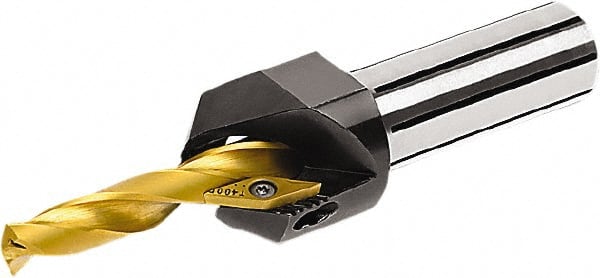

Seco - 12.01 to 14mm Diam, Straight Shank, 20mm Body Shank Diam, 45° Combo Chamfer and Countersink Drill - SD200 Insert, 71.5mm OAL
Item #: 67055863
Brand: Seco
Model #: 24470
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (Decimal Inch) | 0.5512 |
| Minimum Drill Diameter (mm) | 12.01 |
| Minimum Drill Diameter (Decimal Inch) | 0.4728 |
| Body Shank Diameter (mm) | 20.00 |
| Body Shank Diameter (Decimal Inch) | 0.7874 |
| Insert Style | SD200 |
| Chamfer Angle | 45 |
| Body Diameter (mm) | 30.00 |
| Body Diameter (Decimal Inch) | 1.1811 |
| Overall Length (mm) | 71.50 |
| Overall Length (Decimal Inch) | 2.8150 |
| Included Angle | 35 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 46.50 |
| Shank Length (Decimal Inch) | 1.8307 |
| Through Coolant | NonThrough Coolant |
| Series | Seco Feedmax |
| Includes | Cassette; Insert Key; Locking Screw; Module Key; Stop Screw |
