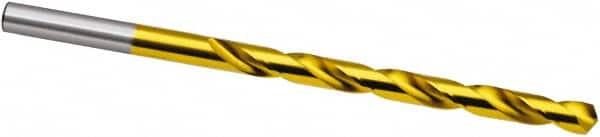

Taper Length Drill Bit: 0.0571″ Dia, 118 ° Coated, RH Cut, Spiral Flute, Cylindrical Shank, Series 667
Item #: 67065375
Brand: Guhring
Model #: 9006670014500
Product Specifications
| Drill Bit Size (mm) | 1.45 |
| Tool Material | High Speed Steel |
| Coating/Finish | Coated |
| Flute Length (mm) | 45.00 |
| Shank Type | Cylindrical |
| Point Type | Cone Relief |
| Flute Type | Spiral |
| Coolant Through | No |
| Drill Point Angle (Degrees) | 118 |
| Overall Length (mm) | 70.00 |
| Shank Diameter (mm) | 1.45 |
| Drill Bit Size (Decimal Inch) | 0.0571 |
| Flute Length x Diamter Ratio | 10xD |
| Cutting Direction | Right Hand |
| Series | 667 |
| Flute Length X Diameter Ratio | 10xD |
| Maximum Drilling Depth (Decimal Inch) | 1.6860 |
| Maximum Drilling Depth (mm) | 42.83 |
| Shank Length (mm) | 25.00 |
| Drill Bit Diameter Tolerance | h8 |
| Tool Performance | General Purpose |
| Web Thinning | Web-Thinned |
| Threaded Shank | No |
| Standards | DIN 340 |
| Spiral Type | Regular |
| Material Grade | M-2 |
