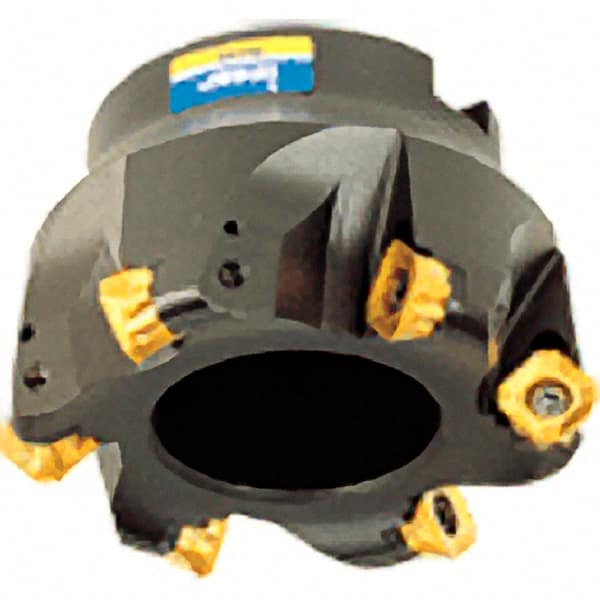

Iscar - 80mm Cut Diam, 27mm Arbor Hole, 8.7mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 7 Inserts, O/S45MT\xB6R/S90MT\xB6R90CW Insert, Right Hand Cut, 7 Flutes, Series ChamMill
Item #: 67148122
Brand: Iscar
Model #: 3101227
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Overall Height (Decimal Inch) | 1.9685 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | O/S45MT; R/S90MT; R90CW |
| Series | ChamMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.3425 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | FCM |
| Number of Flutes | 7 |
| Keyway Width (mm) | 12.40 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Cutting Direction | Right Hand |
| Maximum Insert Radius (Decimal Inch) | 0.0197; 0.0307; 0.0315 |
| Complete Insert Compatibility | O45MT 050505-RM; R90CW 1205-T; R90CW 43-T; R90MT 1205-RM; R90MT 1205-T; R90MT 43-RM; S45MT 1106AP-N; S90MT 1106PC-R |
