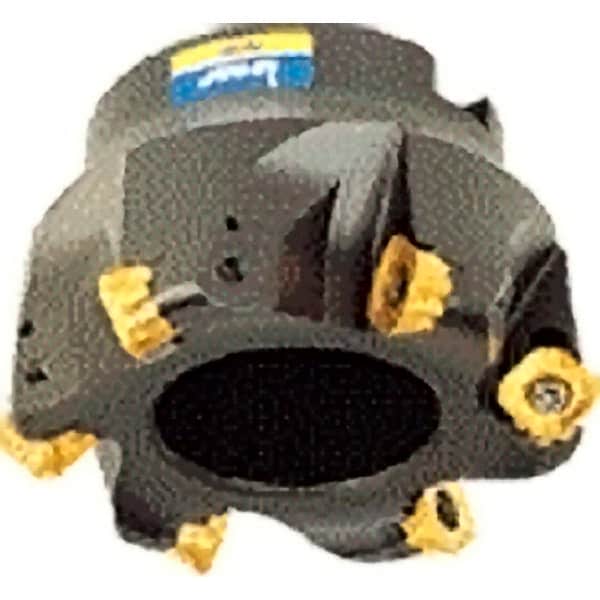

Iscar - 61.8, 62.4, 63, 63.7, 64.8mm Cut Diam, 22mm Arbor Hole, 6mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 5 Inserts, O/S45MT\xB6R/S90MT\xB6R90CW Insert, Right Hand Cut, 5 Flutes, Series ChamMill
Item #: 67148155
Brand: Iscar
Model #: 3101335
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 61.80; 62.40; 63.00; 63.70; 64.80 |
| Cutting Diameter (Decimal Inch) | 2.4331; 2.4567; 2.4803; 2.5079; 2.5512 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (Decimal Inch) | 1.5551; 1.5669; 1.5748; 1.5866; 1.6102 |
| Overall Height (mm) | 39.50; 39.80; 40.00; 40.30; 40.90 |
| Insert Compatibility | O/S45MT; R/S90MT; R90CW |
| Series | ChamMill |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | FRCM |
| Number of Flutes | 5 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Cutting Direction | Right Hand |
| Pitch | Coarse |
| Cutting Edge Length (Decimal Inch) | 0.1339; 0.2165; 0.2362; 0.2520 |
| Maximum Insert Radius (Decimal Inch) | 0.0197; 0.0307; 0.0315 |
| Complete Insert Compatibility | O45MT 050505-RM; R90CW 1205-T; R90CW 43-T; R90MT 1205-RM; R90MT 1205-T; R90MT 43-RM; S45MT 1106AP-N; S90MT 1106PC-R |
