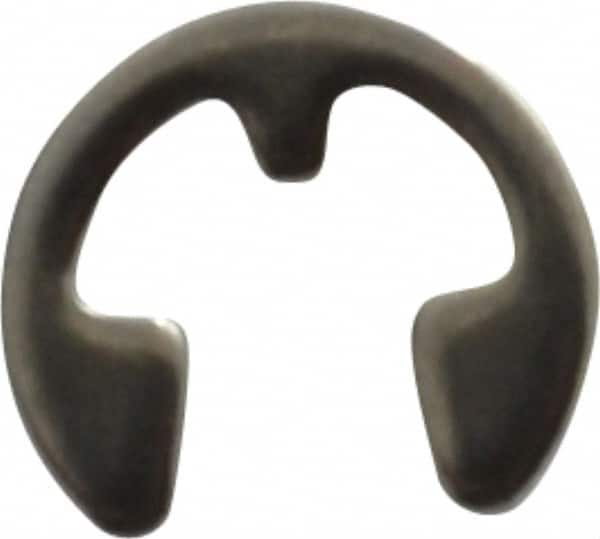

Rotor Clip - 0.074" Groove Diam, 3/32" Shaft Diam, Stainless Steel, E Style External Retaining Rings - 0.02" Groove Width, 0.01" Groove Depth, 0.015" Ring Thickness, Grade 15-7 Grade 632
Item #: 67151126
Brand: Rotor Clip
Model #: E-9SS
Exact Tooling IR#: 04
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 2.38 |
| Shaft Diameter (Inch) | 3/32 |
| Shaft Diameter (Decimal Inch) | 0.0938 |
| Groove Diameter (Decimal Inch) | 0.0740 |
| Free Diameter (Decimal Inch) | 0.0730 |
| Free Outside Diameter (Decimal Inch) | 0.1870 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0200 |
| Groove Depth (Decimal Inch) | 0.0100 |
| Ring Thickness (Decimal Inch) | 0.0150 |
| Minimum Shaft Diameter (mm) | 2.40 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (Decimal Inch) | 0.0000 to 0.0020 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.002 |
| Free Diameter Tolerance (Decimal Inch) | -0.003 to 0.001 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Hardness | Rockwell 15N 82.5-86 |
| Fastener Standard | AMS-5529; UNS S15700 |
