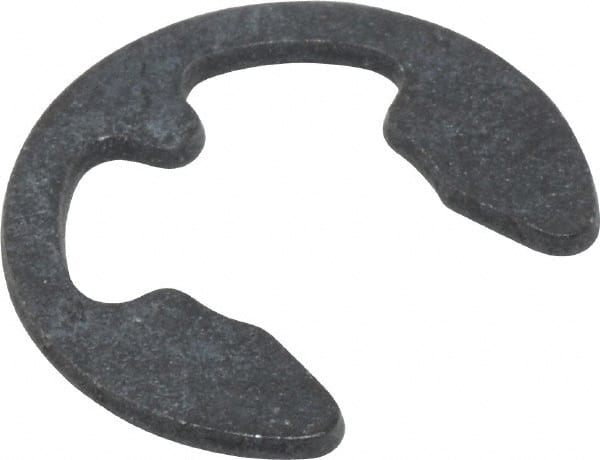

Rotor Clip - 7mm Groove Diam, 8 to 11mm Shaft Diam, Phosphate & Oil Steel, E Style External Retaining Rings - 0.94mm Groove Width, 0.9mm Ring Thickness, Grade 1060-1090
Item #: 67152082
Brand: Rotor Clip
Model #: DE-7ST PD B100
Exact Tooling IR#: 04
Features and Benefits
E-style external retaining rings snap into grooves from the side of a shaft. They are ideal for use on small-diameter shafts. E-style retaining rings are also referred to as radially installed or side-mount retaining rings.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | E Style |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 8.00 to 11.00 |
| Groove Diameter (mm) | 7.00 |
| Free Diameter (mm) | 5.84 |
| Free Outside Diameter (mm) | 13.80 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate & Oil |
| Nominal Size (mm) | 7.00 |
| Material Grade | 1060-1090 |
| Groove Width (mm) | 0.94 |
| Ring Thickness (mm) | 0.90 |
| Minimum Shaft Diameter (mm) | 8.00 |
| Maximum Shaft Diameter (mm) | 11.00 |
| Number of Prongs | 3 |
| Groove Diameter Tolerance (mm) | -0.090 to 0.090 |
| Groove Width Tolerance (mm) | 0.000 to 0.050 |
| Free Diameter Tolerance (mm) | -0.048 to 0.048 |
| Ring Thickness Tolerance (mm) | -0.020 to 0.020 |
| Hardness | Rockwell C 46-54 |
| Fastener Standard | DIN 6799; SAE 1060-1090 |
