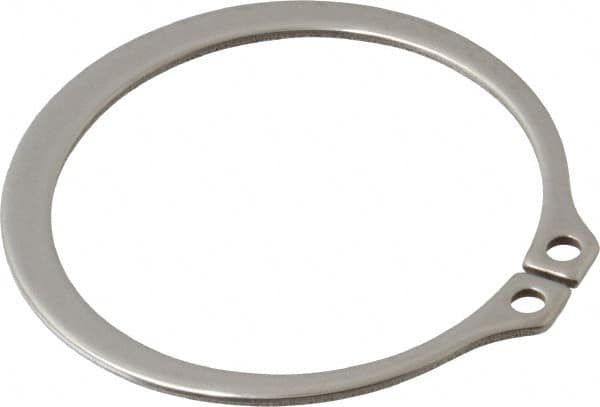

Rotor Clip - 1.886" Groove Diam, 2" Shaft Diam, Zinc-Plated Stainless Steel, Snap External Retaining Rings - 0.068" Groove Width, 0.057" Groove Depth, 0.062" Ring Thickness, Grade 15-7 Grade 632
Item #: 67155085
Brand: Rotor Clip
Model #: SH-200SS B100
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Stainless steel is a strong, corrosion-resistant alloy with excellent resistance to heat. It is used in high-stress, outdoor and corrosive applications.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 50.80 |
| Shaft Diameter (Inch) | 2 |
| Shaft Diameter (Decimal Inch) | 2.0000 |
| Groove Diameter (Decimal Inch) | 1.8860 |
| Free Diameter (Decimal Inch) | 1.8500 |
| Free Outside Diameter (Decimal Inch) | 2.6000 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Stainless Steel |
| Finish/Coating | Zinc-Plated |
| Material Grade | 15-7 Grade 632 |
| Groove Width (Decimal Inch) | 0.0680 |
| Groove Depth (Decimal Inch) | 0.0570 |
| Ring Thickness (Decimal Inch) | 0.0620 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0050 to 0.0050 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.004 |
| Free Diameter Tolerance (Decimal Inch) | -0.020 to 0.013 |
| Ring Thickness Tolerance (Decimal Inch) | -0.003 to 0.003 |
| Hardness | Rockwell C 44-51 |
| Fastener Standard | AMS-5529; UNS S15700 |
