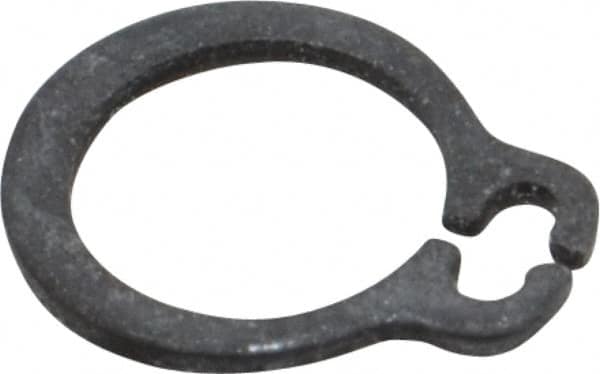

Rotor Clip - 7.6mm Groove Diam, 8mm Shaft Diam, Phosphate & Oil Steel, Snap External Retaining Rings - 0.9mm Groove Width, 0.2mm Groove Depth, 0.8mm Ring Thickness, Grade 1060-1090
Item #: 67155689
Brand: Rotor Clip
Model #: DSH-8ST PD B100
Exact Tooling IR#: 04
Features and Benefits
Snap external retaining rings are pulled open and placed onto the shaft end. The ring is then released and springs onto the shaft s grooves.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Snap |
| System of Measurement | Metric |
| Shaft Diameter (mm) | 8.00 |
| Groove Diameter (mm) | 7.60 |
| Free Diameter (mm) | 7.40 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate & Oil |
| Nominal Size (mm) | 7.60 |
| Material Grade | 1060-1090 |
| Groove Width (mm) | 0.90 |
| Groove Depth (mm) | 0.20 |
| Ring Thickness (mm) | 0.80 |
| Groove Diameter Tolerance (mm) | -0.060 to 0.060 |
| Free Diameter Tolerance (mm) | -0.180 to 0.060 |
| Ring Thickness Tolerance (mm) | -0.05 |
| Hardness | Rockwell 30N 63-69.5 |
| Fastener Standard | DIN 471; SAE 1060-1090 |
