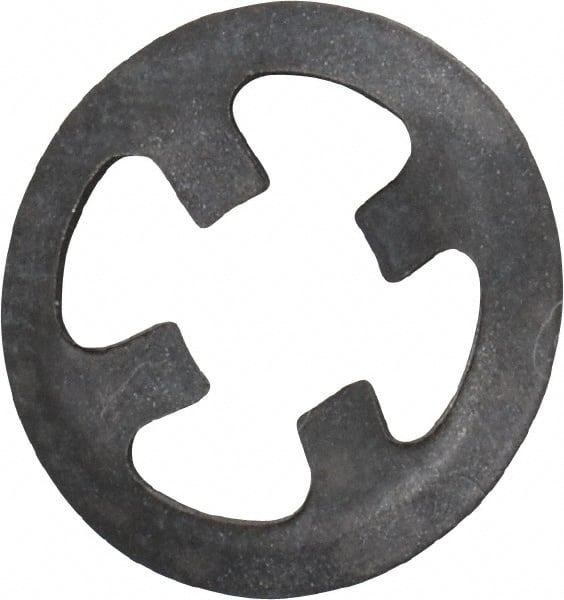

Rotor Clip - 5/32" Shaft Diam, Phosphate Steel, Self Locking External Retaining Rings - 0.01" Ring Thickness, Grade 1060-1090
Item #: 67155960
Brand: Rotor Clip
Model #: TX-15ST PA
Exact Tooling IR#: 04
Features and Benefits
Self-locking external retaining rings have teeth on the inside diameter that secure and lock to the outside of a shaft.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| Type | Self Locking |
| System of Measurement | Inch |
| Shaft Diameter (mm) | 3.97 |
| Shaft Diameter (Inch) | 5/32 |
| Shaft Diameter (Decimal Inch) | 0.1563 |
| Free Outside Diameter (Decimal Inch) | 0.3970 |
| Military Specification | Does Not Meet Military Specifications |
| Material | Steel |
| Finish/Coating | Phosphate |
| Material Grade | 1060-1090 |
| Ring Thickness (Decimal Inch) | 0.0100 |
| Ring Height (Decimal Inch) | 0.0290 |
| Minimum Shaft Diameter (Decimal Inch) | 0.1520 |
| Maximum Shaft Diameter (Decimal Inch) | 0.1600 |
| Number of Prongs | 4 |
| Outside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Ring Thickness Tolerance (Decimal Inch) | -0.001 to 0.001 |
| Ring Height Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Thrust Load at Standard Thickness (Lb.) | 46.00 |
| Thrust Load at Optional Thickness (Lb.) | 70.00 |
| Hardness | Rockwell 15N 84-86 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
