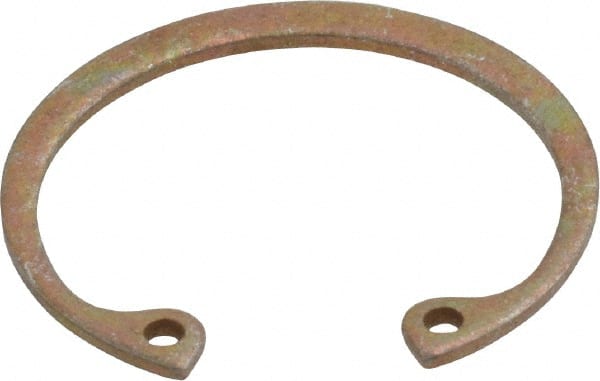

Rotor Clip - 0.042" Thick, Zinc Yellow Dichromate Finish, Steel Snap Internal Retaining Ring - 0.046" Groove Width, 0.033" Groove Depth, 1.066" Groove Diam, Grade 1060-1090
Item #: 67156802
Brand: Rotor Clip
Model #: HO-100ST ZD
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Snap |
| Material | Steel |
| System of Measurement | Inch |
| Bore Diameter (Inch) | 1 |
| Bore Diameter (Decimal Inch) | 1.0000 |
| Bore Diameter (mm) | 25.40 |
| Groove Diameter (Decimal Inch) | 1.0660 |
| Groove Width (Decimal Inch) | 0.0460 |
| Free Outside Diameter (Decimal Inch) | 1.1110 |
| Military Specification | Does Not Meet Military Specifications |
| Ring Thickness (Decimal Inch) | 0.0420 |
| Material Grade | 1060-1090 |
| Finish/Coating | Zinc Yellow Dichromate |
| Groove Depth (Decimal Inch) | 0.0330 |
| Groove Diameter Tolerance (Decimal Inch) | -0.0030 to 0.0030 |
| Groove Width Tolerance (Decimal Inch) | 0.000 to 0.003 |
| Free Outside Diameter Tolerance (Decimal Inch) | -0.010 to 0.015 |
| Ring Thickness Tolerance (Decimal Inch) | -0.002 to 0.002 |
| Thrust Load (Lb.) | 2800 (Groove Safety Factor); 6039 (Ring Safety Factor) |
| Hardness | Rockwell 30N 66-71 |
| Fastener Standard | SAE 1060-1090; UNS G10600-G10900 |
