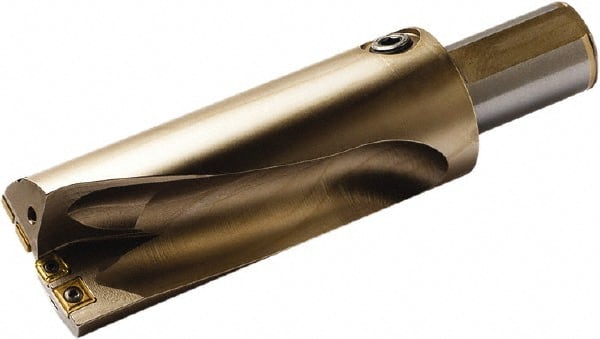

Seco - 6-1/4" Max Drill Depth, 2.5xD, 2-1/2" Diam, Indexable Insert Drill - 4 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 67162446
Brand: Seco
Model #: 36769
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SD542 |
| Drill Diameter (Inch) | 2-1/2 |
| Drill Diameter (Decimal Inch) | 2.5000 |
| Maximum Drill Depth (Decimal Inch) | 6.2500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.5xD |
| Insert Size (Decimal Inch) | 0.3750x0.1250 (Center); 0.3750x0.1560 (Peripheral) |
| Number of Drill Inserts | 4 |
| Insert Compatibility (Outside or Peripheral) | SCGX 09T308.. |
| Insert Compatibility | SPGX 0903-C1 |
| Flute Length (Decimal Inch) | 6.5200 |
| Body Length (Decimal Inch) | 8.2800 |
| Shank Length (Decimal Inch) | 4.5000 |
| Collar Diameter (Decimal Inch) | 3.1100 |
| Series | PerfoMAX |
