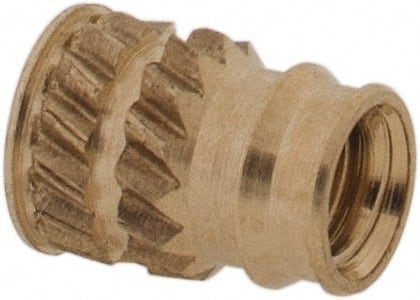

E-Z LOK - #2-56, 0.107" Small to 0.123" Large End Hole Diam, Brass Double Vane Tapered Hole Threaded Insert - 0.136" Insert, 0.115" Pilot Diam, 3/16" OAL, 0.08" Min Wall Thickness
Item #: 67214445
Brand: E-Z LOK
Model #: DV-002-TH
Exact Tooling IR#: 04
Features and Benefits
Double vane inserts have two extruding lips, called vanes, along the lower outer shaft of the insert. They provide extra holding power and resistance against pullout.
| Product Specifications | |
|---|---|
| Type | Double Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | #2-56 |
| Overall Length (Decimal Inch) | 0.1880 |
| Insert Diameter (Decimal Inch) | 0.1360 |
| Pilot Diameter (Decimal Inch) | 0.1150 |
| Small End Hole Diameter (Decimal Inch) | 0.1070 |
| Large End Hole Diameter (Decimal Inch) | 0.1230 |
| Minimum Wall Thickness (Decimal Inch) | 0.0800 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNC |
