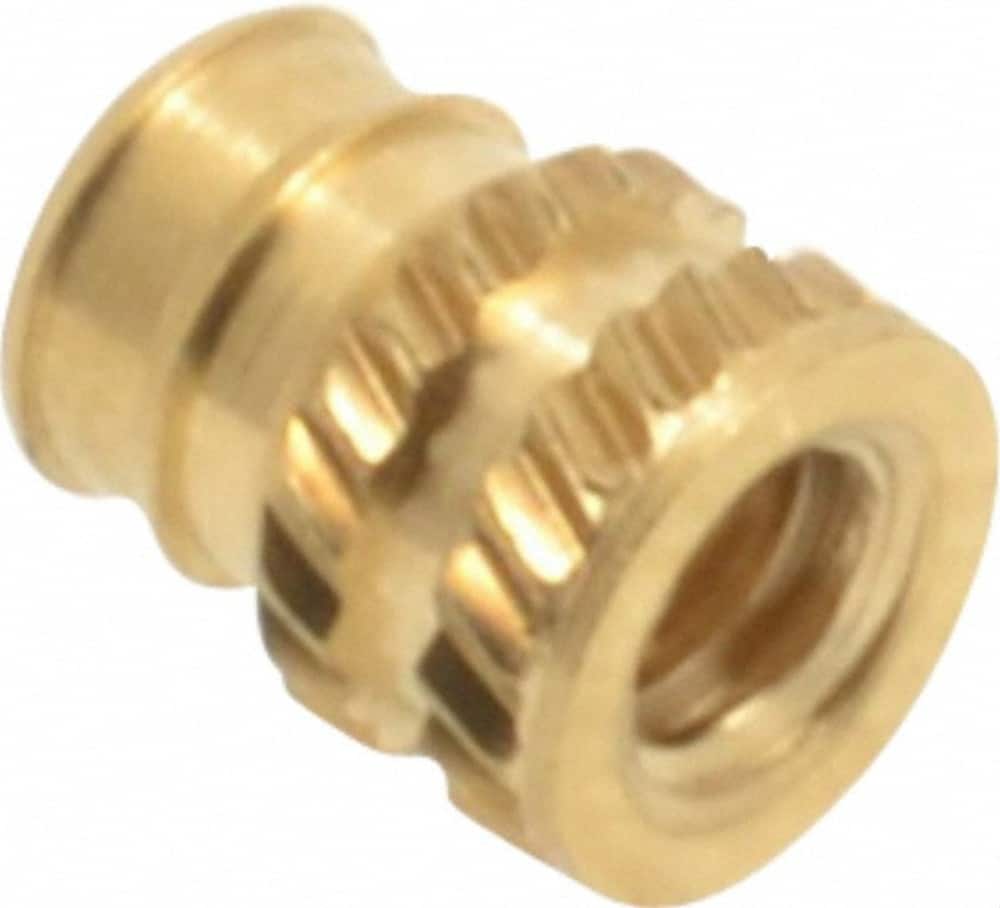

E-Z LOK - #4-40, 0.141" Small to 0.159" Large End Hole Diam, Brass Double Vane Tapered Hole Threaded Insert - 0.172" Insert, 0.144" Pilot Diam, 7/32" OAL, 0.093" Min Wall Thickness
Item #: 67214486
Brand: E-Z LOK
Model #: DV-004-TH
Exact Tooling IR#: 04
Features and Benefits
Double vane inserts have two extruding lips, called vanes, along the lower outer shaft of the insert. They provide extra holding power and resistance against pullout.
| Product Specifications | |
|---|---|
| Type | Double Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | #4-40 |
| Overall Length (Decimal Inch) | 0.2190 |
| Insert Diameter (Decimal Inch) | 0.1720 |
| Pilot Diameter (Decimal Inch) | 0.1440 |
| Small End Hole Diameter (Decimal Inch) | 0.1410 |
| Large End Hole Diameter (Decimal Inch) | 0.1590 |
| Minimum Wall Thickness (Decimal Inch) | 0.0930 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNC |
