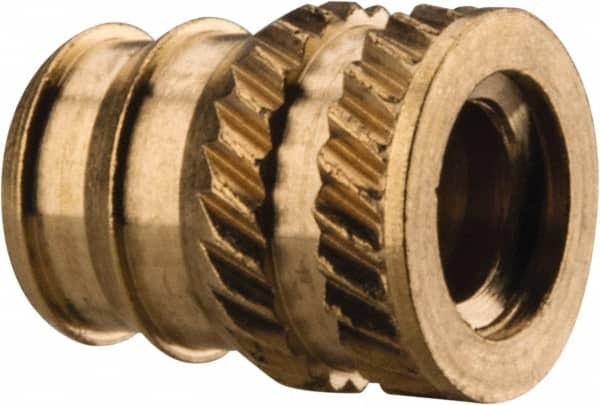

E-Z LOK - #10-24, 0.246" Small to 0.277" Large End Hole Diam, Brass Double Vane Tapered Hole Threaded Insert - 19/64" Insert, 1/4" Pilot Diam, 3/8" OAL, 0.159" Min Wall Thickness
Item #: 67214601
Brand: E-Z LOK
Model #: DV-124-TH
Exact Tooling IR#: 04
Features and Benefits
Double vane inserts have two extruding lips, called vanes, along the lower outer shaft of the insert. They provide extra holding power and resistance against pullout.
| Product Specifications | |
|---|---|
| Type | Double Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | #10-24 |
| Overall Length (Decimal Inch) | 0.3750 |
| Insert Diameter (Decimal Inch) | 0.2970 |
| Pilot Diameter (Decimal Inch) | 0.2510 |
| Small End Hole Diameter (Decimal Inch) | 0.2460 |
| Large End Hole Diameter (Decimal Inch) | 0.2770 |
| Minimum Wall Thickness (Decimal Inch) | 0.1590 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNC |
