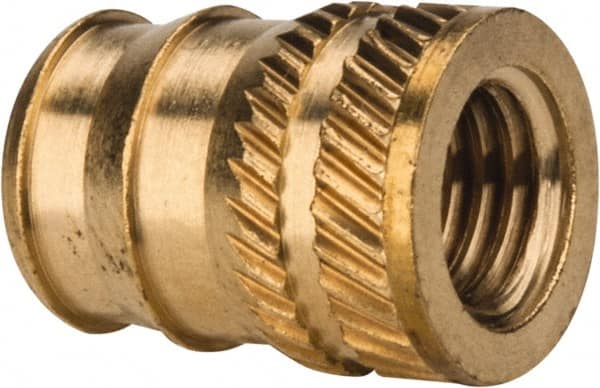

E-Z LOK - 1/4-28, 0.321" Small to 0.363" Large End Hole Diam, Brass Double Vane Tapered Hole Threaded Insert - 3/8" Insert, 0.332" Pilot Diam, 1/2" OAL, 0.194" Min Wall Thickness
Item #: 67214726
Brand: E-Z LOK
Model #: DV-428-TH
Exact Tooling IR#: 04
Features and Benefits
Double vane inserts have two extruding lips, called vanes, along the lower outer shaft of the insert. They provide extra holding power and resistance against pullout.
| Product Specifications | |
|---|---|
| Type | Double Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | 1/4-28 |
| Overall Length (Decimal Inch) | 0.5000 |
| Insert Diameter (Decimal Inch) | 0.3750 |
| Pilot Diameter (Decimal Inch) | 0.3320 |
| Small End Hole Diameter (Decimal Inch) | 0.3210 |
| Large End Hole Diameter (Decimal Inch) | 0.3630 |
| Minimum Wall Thickness (Decimal Inch) | 0.1940 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNF |
