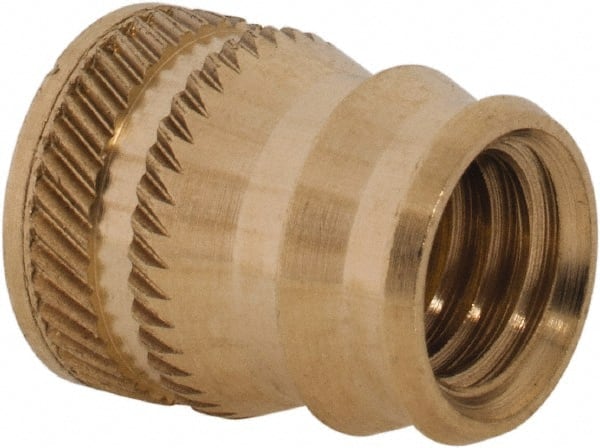

E-Z LOK - 5/16-18, 0.401" Small to 0.448" Large End Hole Diam, Brass Double Vane Tapered Hole Threaded Insert - 15/32" Insert, 13/32" Pilot Diam, 9/16" OAL, 0.245" Min Wall Thickness
Item #: 67214767
Brand: E-Z LOK
Model #: DV-518-TH
Exact Tooling IR#: 04
Features and Benefits
Double vane inserts have two extruding lips, called vanes, along the lower outer shaft of the insert. They provide extra holding power and resistance against pullout.
| Product Specifications | |
|---|---|
| Type | Double Vane |
| System of Measurement | Inch |
| Thread Size (Inch) | 5/16-18 |
| Overall Length (Decimal Inch) | 0.5620 |
| Insert Diameter (Decimal Inch) | 0.4690 |
| Pilot Diameter (Decimal Inch) | 0.4060 |
| Small End Hole Diameter (Decimal Inch) | 0.4010 |
| Large End Hole Diameter (Decimal Inch) | 0.4480 |
| Minimum Wall Thickness (Decimal Inch) | 0.2450 |
| For Material Type | Plastic |
| Material | Brass |
| Thread Standard | UNC |
