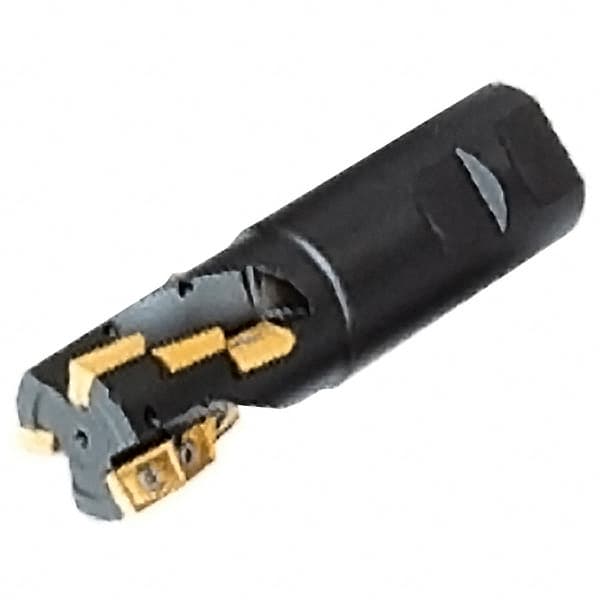

Iscar - 1-1/4" Cut Diam, 1.44" Max Depth of Cut, 1-1/4" Shank Diam, 4.3" OAL, Indexable Square Shoulder Helical End Mill - 3M AXKT 1304... Inserts, Weldon Shank, Series Mill2000
Item #: 67271551
Brand: Iscar
Model #: 3101573
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.3000 |
| Series | Mill2000 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.4400 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Number of Flutes | 3 |
| Head Length (Decimal Inch) | 2.0000 |
| Weldon Flat | Yes |
| Insert Compatibility | 3M AXKT 1304... |
