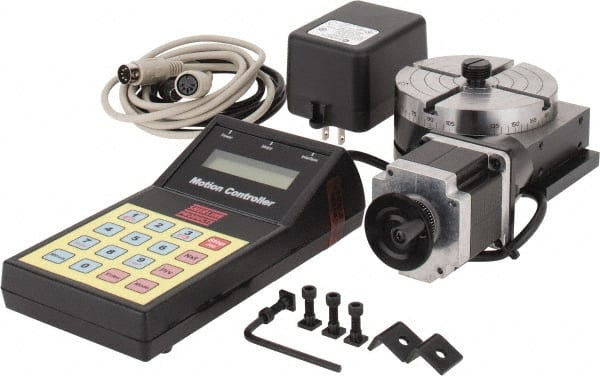

Sherline - 28,800 Max RPM Table/400 Max RPM Motor, 4" Table Diam, Horiz, CNC Rotary Indexing Table - 1.963" Centerline Height, 4" Subtable OD, 0.316" Through Hole, 120.00 Voltage, 0.006" Positioning Accuracy, AC Stepper Motor - Exact Tooling

Sherline - 28,800 Max RPM Table/400 Max RPM Motor, 4" Table Diam, Horiz, CNC Rotary Indexing Table - 1.963" Centerline Height, 4" Subtable OD, 0.316" Through Hole, 120.00 Voltage, 0.006" Positioning Accuracy, AC Stepper Motor


Item #: 67274613
Brand: Sherline
Model #: 8700
Exact Tooling IR#: 04

Product Specifications
Indexer Type Rotary Table
Maximum RPM 28800 (Table); 400 (Motor)
Table Diameter (Inch) 4
Setting Position Horizontal
Sub Table Outside Diameter (Inch) 4
Centerline Height (Decimal Inch) 1.9630
Through Hole Size (Decimal Inch) 0.3160
Resolution (Degrees) 0.0125
Positioning Accuracy (Decimal Inch) 0.0060
Gear Ratio 72:1
Motor Type AC Stepper
Voltage 120.00
Includes Chuck Adapter; Computer/Keypad Unit; Connecting Cables; Instructions; Mounted Stepper Motor; Mounting Hardware; Power Supply
$ 1,166.74
