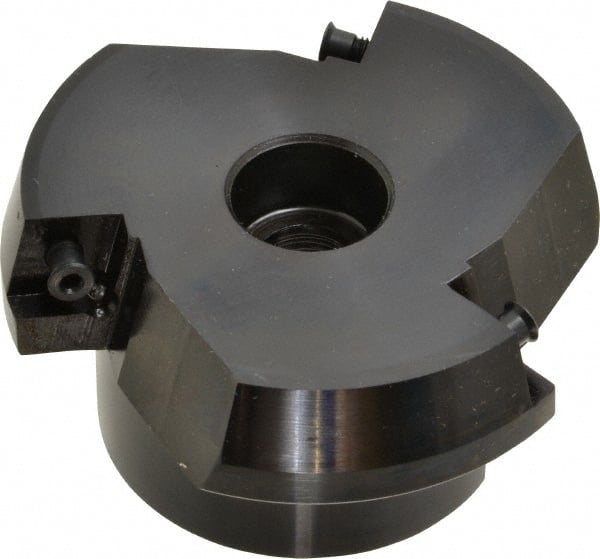

Cutting Tool Technologies - 3" Cut Diam, 1" Arbor Hole, 0.45" Max Depth of Cut, 15° Indexable Chamfer & Angle Face Mill - 3 Inserts, CNMA 432 Insert, 3 Flutes, Series SCNM
Item #: 67315937
Brand: Cutting Tool Technologies
Model #: SCNM-520
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 15 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | CNMA 432 |
| Series | SCNM |
| Maximum Depth of Cut (Decimal Inch) | 0.4500 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | SCNM |
| Number of Flutes | 3 |
| Rake | Negative |
| Hub Diameter (mm) | 1.00 |
| Maximum Body Diameter (Decimal Inch) | 3.0000 |
| Complete Insert Compatibility | CNMG 432 |
