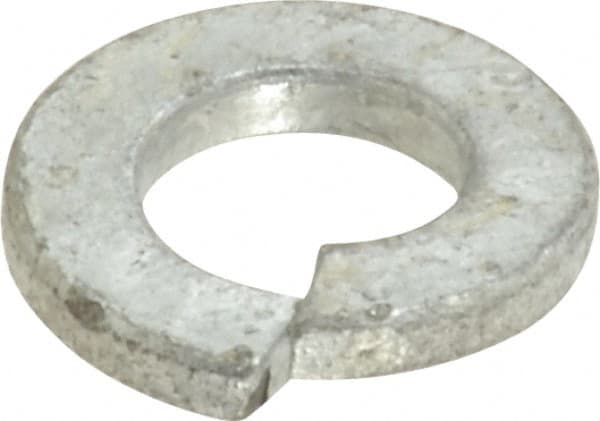

Value Collection - 1/4", 0.255" ID, 0.062" Thick Split Lock Washer - Steel, Hot Dipped Galvanized Finish, 0.255" Min ID, 0.26" Max ID, 0.487" Min OD, 0.489" Max OD
Item #: 67318485
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 1/4 |
| Material | Steel |
| Finish/Coating | Hot Dipped Galvanized |
| Inside Diameter (Decimal Inch) | 0.2550 |
| Thickness (Decimal Inch) | 0.0620 |
| Minimum Inside Diameter (Decimal Inch) | 0.2550 |
| Maximum Inside Diameter (Decimal Inch) | 0.2600 |
| Minimum Outside Diameter (Decimal Inch) | 0.4870 |
| Maximum Outside Diameter (Decimal Inch) | 0.4890 |
| Military Specification | Does Not Meet Military Specifications |
