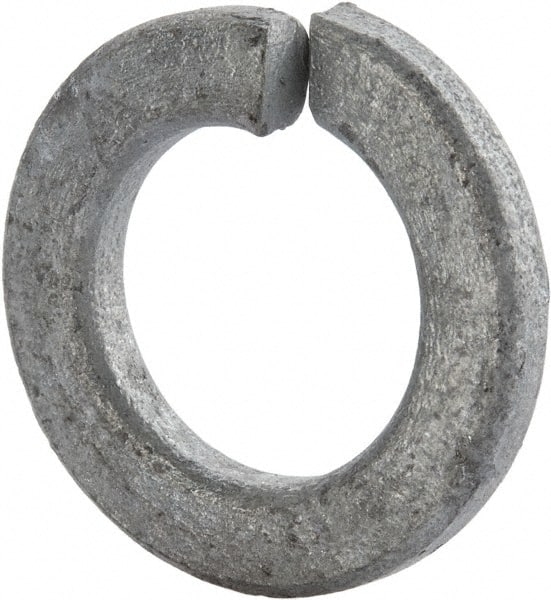

Value Collection - 3/4", 0.636" ID, 0.156" Thick Split Lock Washer - Steel, Hot Dipped Galvanized Finish, 0.636" Min ID, 0.641" Max ID, 1.073" Min OD, 1.079" Max OD
Item #: 67318683
Brand: Value Collection
Exact Tooling IR#: 04
Features and Benefits
Split lock washers have a split at one point along their outer diameter, which creates compression and tension to lock the nut in place. Split lock washers are used in high-vibration applications.
Steel is strong and durable but less corrosion resistant than stainless steel. To improve its resistance to corrosion, it may receive additional finishes and coatings.
| Product Specifications | |
|---|---|
| System of Measurement | Inch |
| Type | Split Lock Washer |
| Screw Size | 3/4 |
| Material | Steel |
| Finish/Coating | Hot Dipped Galvanized |
| Inside Diameter (Decimal Inch) | 0.6360 |
| Thickness (Decimal Inch) | 0.1560 |
| Minimum Inside Diameter (Decimal Inch) | 0.6360 |
| Maximum Inside Diameter (Decimal Inch) | 0.6410 |
| Minimum Outside Diameter (Decimal Inch) | 1.0730 |
| Maximum Outside Diameter (Decimal Inch) | 1.0790 |
| Military Specification | Does Not Meet Military Specifications |
