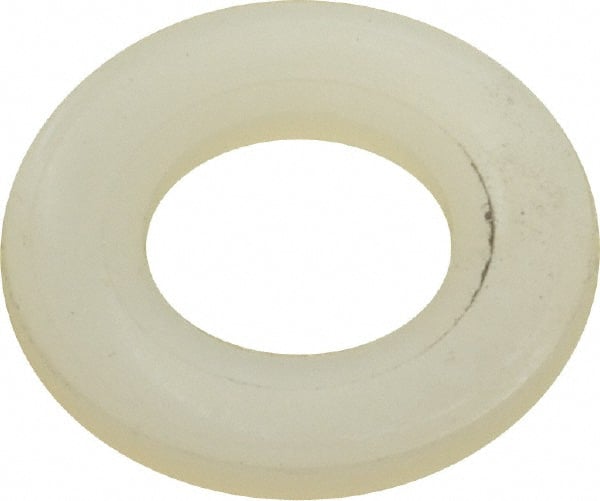

Made in USA - 3/8" Screw, Grade 6/6 Nylon Standard Flat Washer - 9.91mm ID x 19.05mm OD, 1.57mm Thick
Item #: 67353722
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Flat washers are standard washers used for general-purpose fastening. They are placed under the head of a bolt or above a nut to distribute clamping force and prevent fasteners from pulling through materials.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Standard |
| System of Measurement | Inch |
| Screw Size | 3/8 |
| Inside Diameter (Decimal Inch) | 0.3900 |
| Inside Diameter (mm) | 9.91 |
| Outside Diameter (Decimal Inch) | 0.7500 |
| Outside Diameter (mm) | 19.05 |
| Thickness (Decimal Inch) | 0.0620 |
| Thickness (mm) | 1.57 |
| Material Grade | 6/6 |
| Material | Nylon |
| Inside Diameter Tolerance (Decimal Inch) | -0.005 to 0.005 |
| Outside Diameter Tolerance (Decimal Inch) | -0.008 to 0.008 |
