Made in USA - Round Head Nylon Push Mount Blind Rivet - Nylon Mandrel, 0.093" to 0.35" Grip, 0.38" Head Diam, 0.187" Max Hole Diam, 0.45" Length Under Head, 1/8" Body Diam
Item #: 67355164
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits

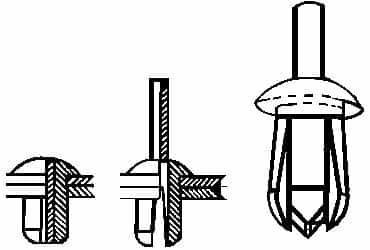

Push-mount rivets snap into holes using only a finger. They have legs that expand to secure materials and then release when the head is pulled.
Round head types are dome shaped with flat bearing surfaces. They have a higher head height than pan head rivets.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
Nylon is a lightweight, nonconductive material that is resistant to impact, wear and abrasion. It is ideal for electrical applications or where corrosion is a concern.
| Product Specifications | |
|---|---|
| Type | Push Mount |
| Head Type | Round |
| Rivet Material | Nylon |
| Mandrel Material | Nylon |
| Minimum Grip (Decimal Inch) | 0.0930 |
| Maximum Grip (Decimal Inch) | 0.3500 |
| Head Diameter (Decimal Inch) | 0.3800 |
| Minimum Hole Diameter (Decimal Inch) | 0.1870 |
| Maximum Hole Diameter (Decimal Inch) | 0.1870 |
| Length Under Head (Decimal Inch) | 0.4500 |
| Body Diameter (Decimal Inch) | 0.1250 |
| Body Diameter (Inch) | 1/8 |
| Head Height (Decimal Inch) | 0.0800 |
